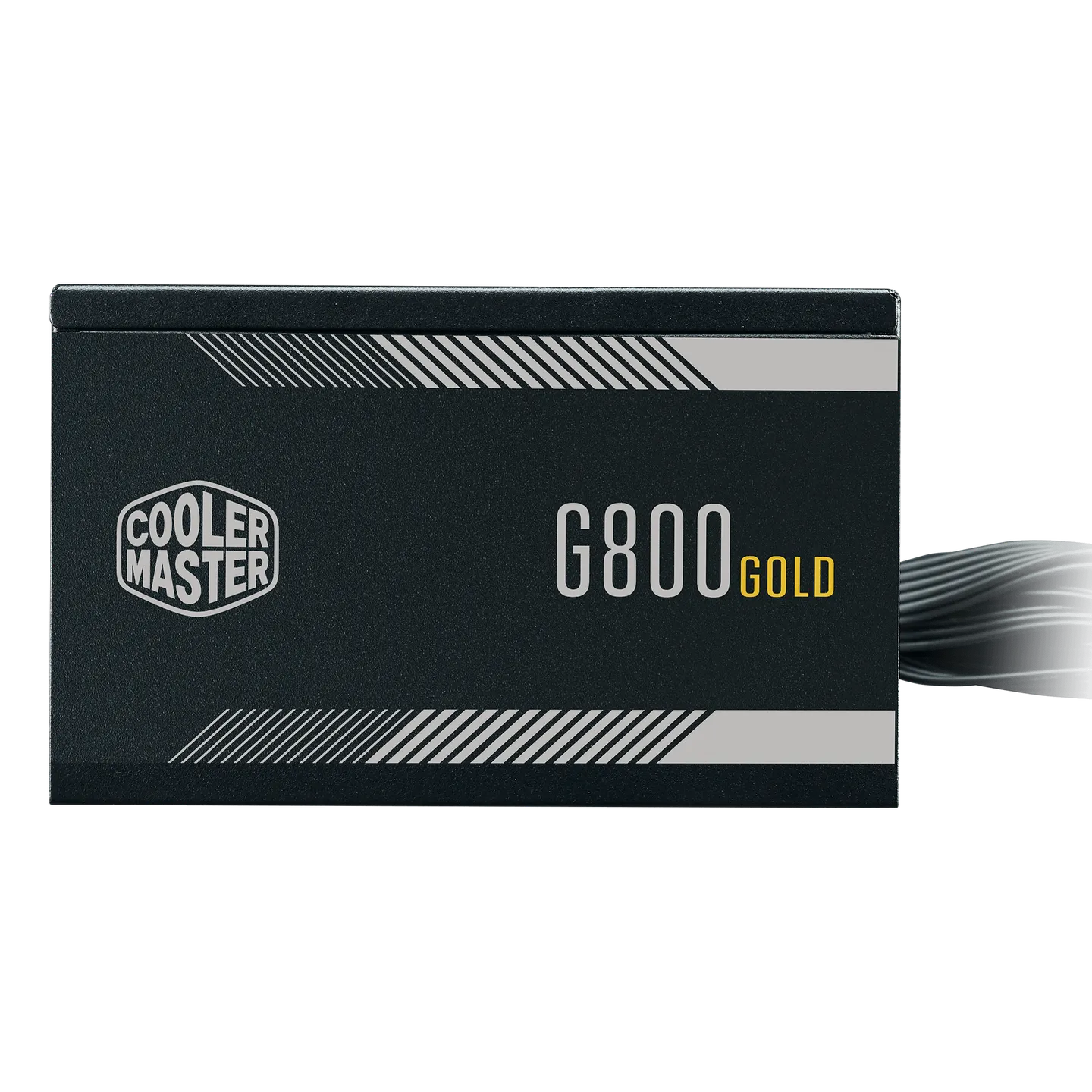

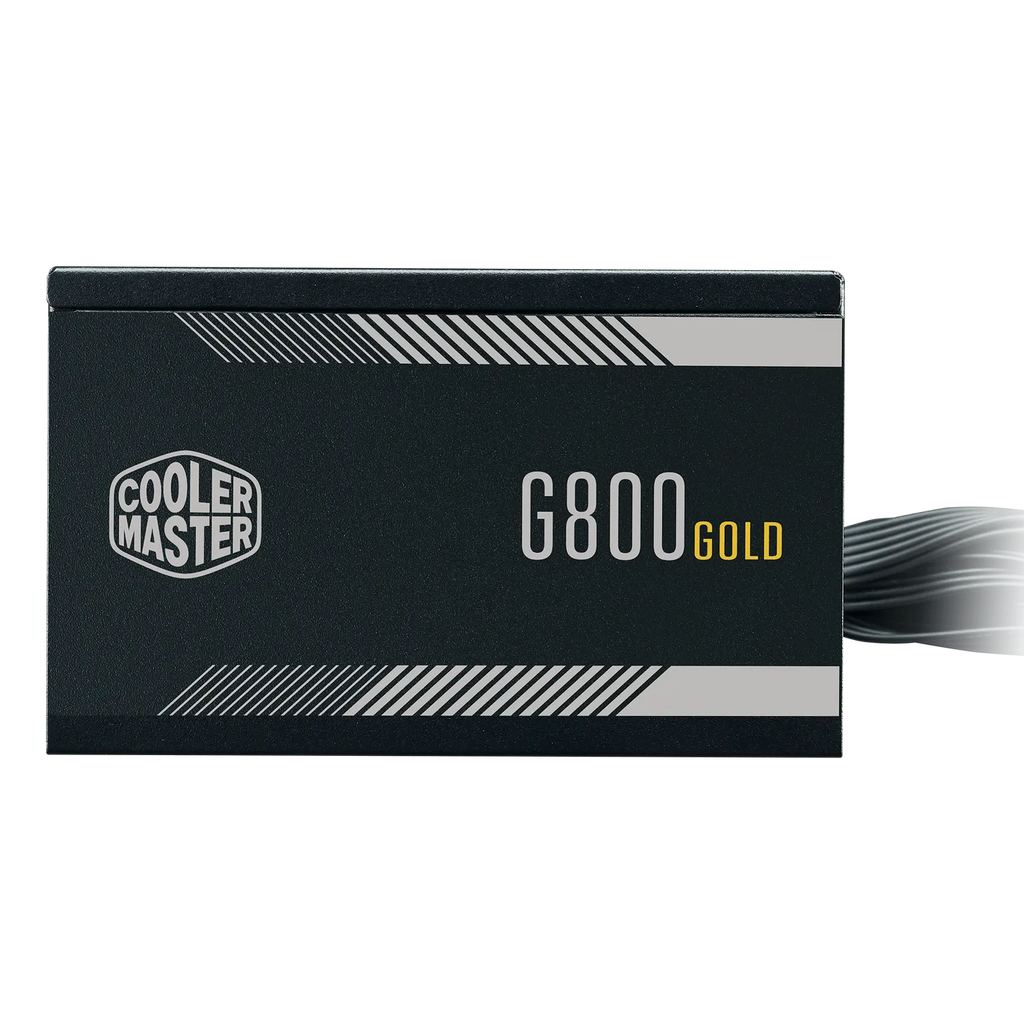

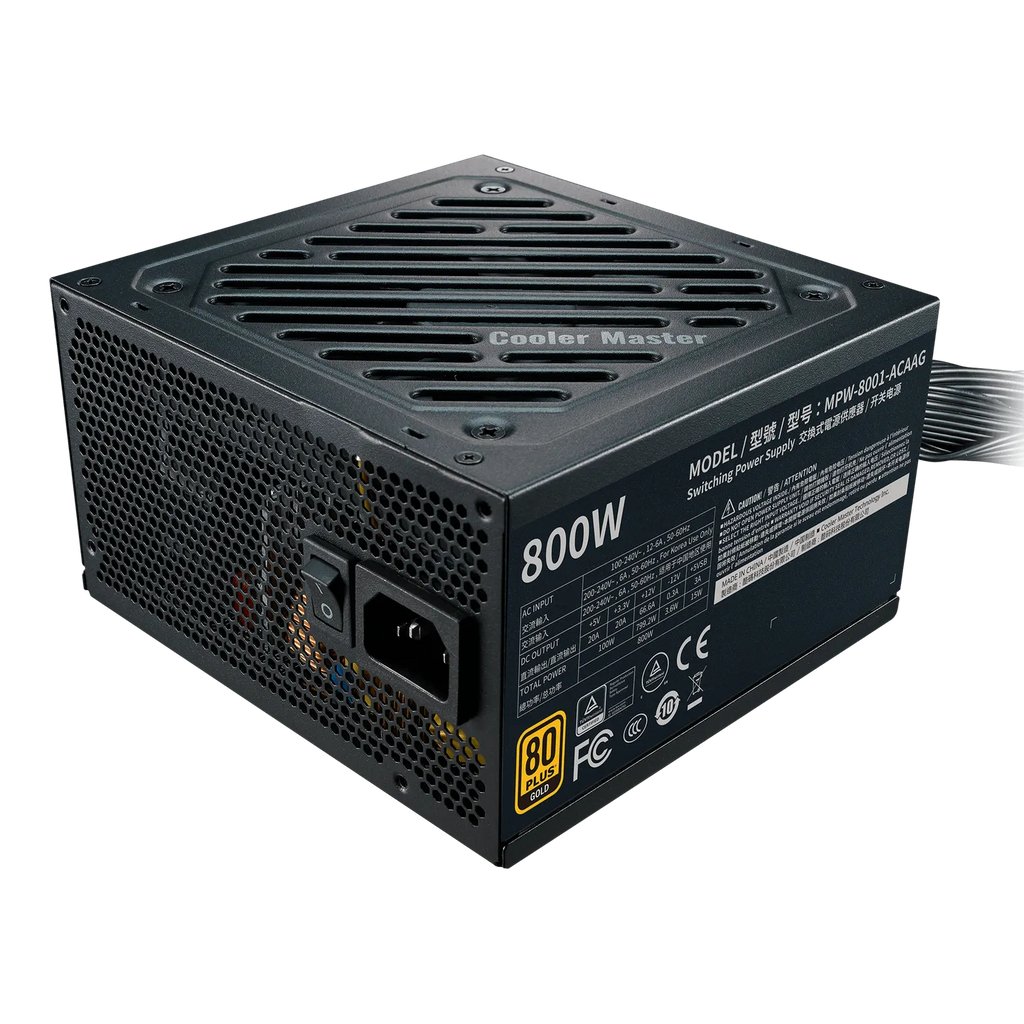

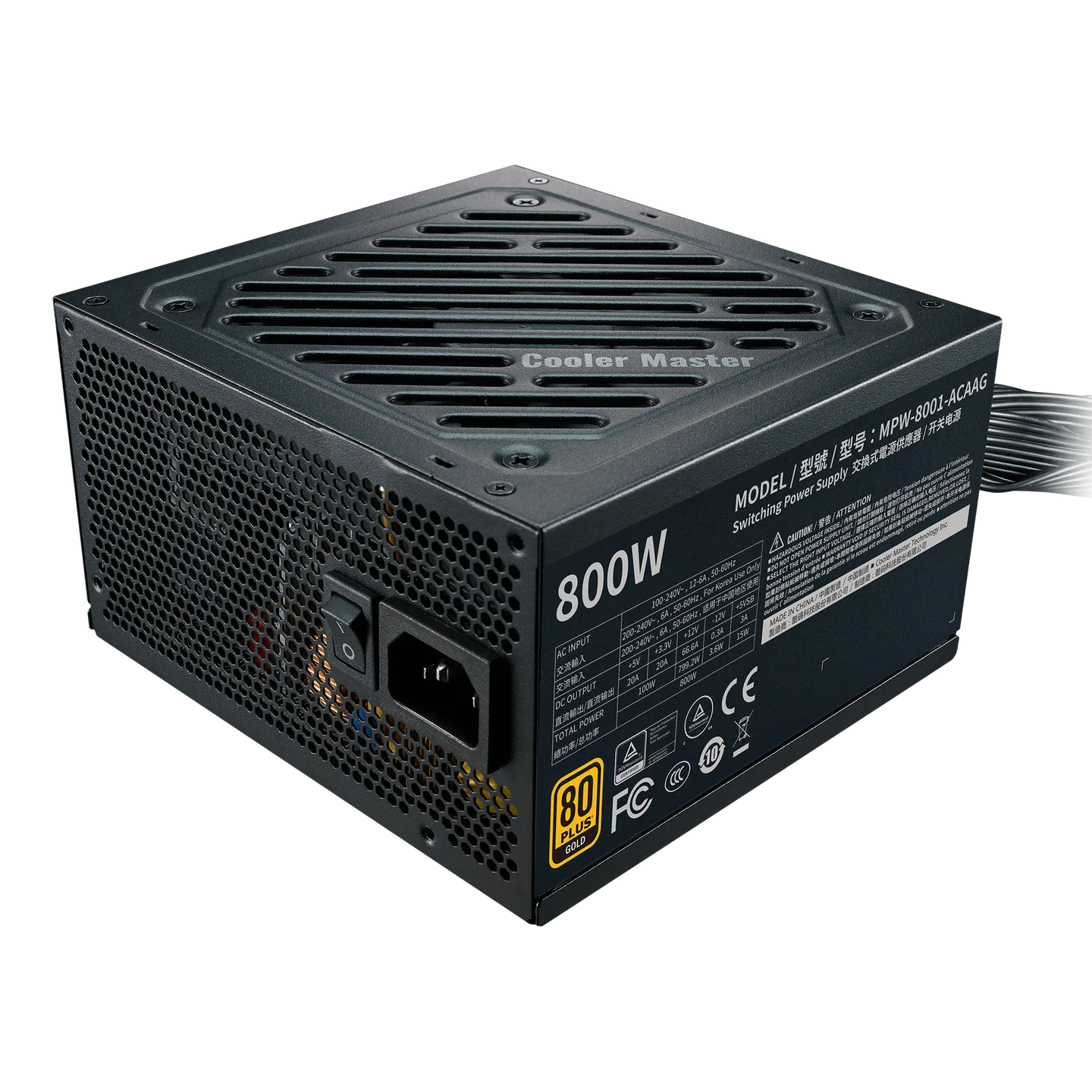

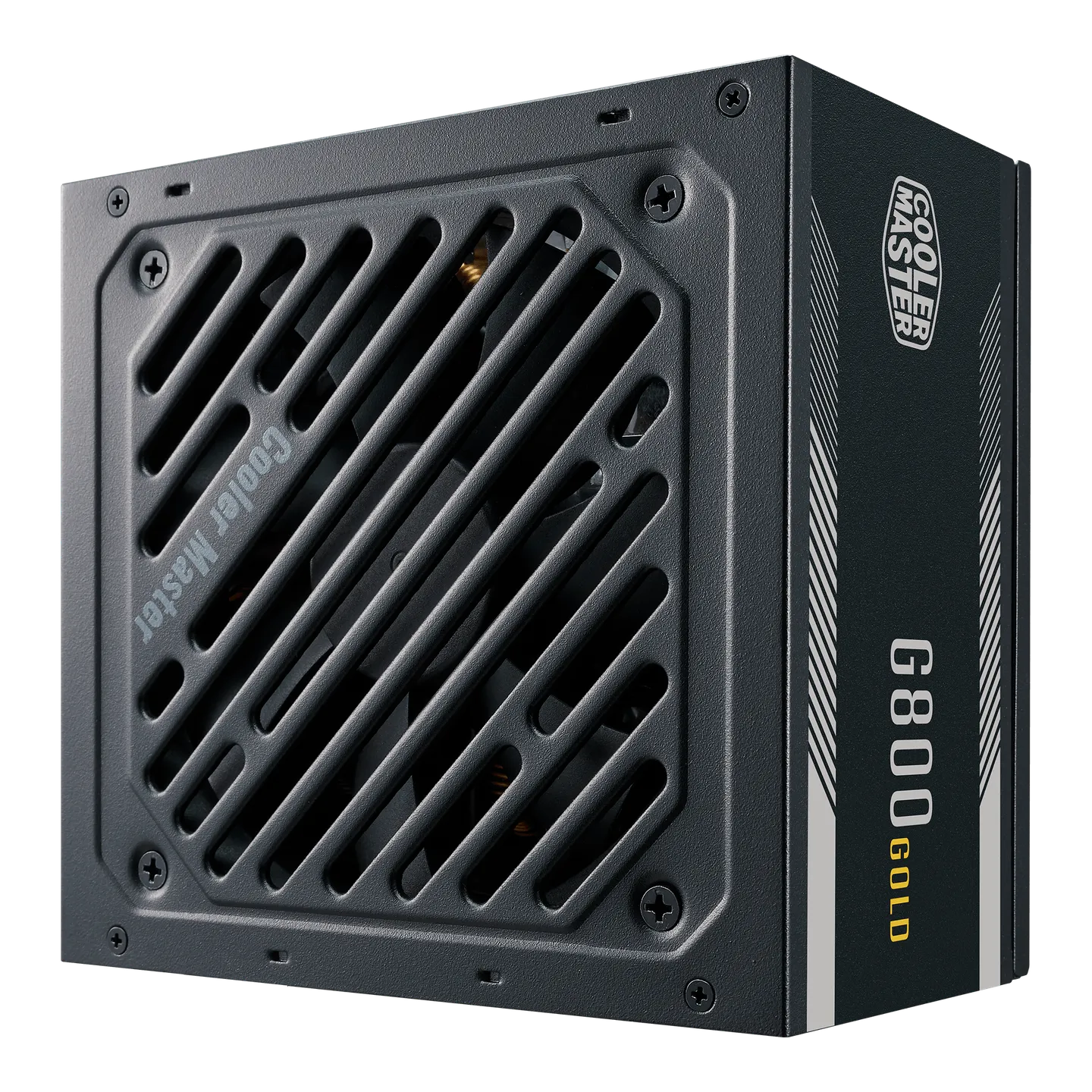

SMPS COOLER MASTER MWE GOLD G800W V2
| Features | Specifications |
|---|---|
| Category | Above 750W |
| PFC | Active PFC |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| PCI-e 6+2 Pin Connectors | 4 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| Power Good Signal | 100 – 150 ms |
| Warranty | 5 Years |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| Efficiency | ≥90% @ Typical Load |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| MTBF | >100,000 Hours |
| Input Voltage | 100-240V |
| Input Frequency | 47-63Hz |
| Input Current | 12-6A |
| Hold Up Time | ≥15ms at 100% Load |
| Modular | Non Modular |
| Protections | OVP, OPP, SCP, UVP, OTP, OCP |
| ATX Version | ATX 12V V2.52 |
| Series | G Series |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Regulatory Certifications | CCC, CE, EAC, cTUVus, FCC, BSMI, CB, TUV, RoHS2.0, KC+KCC, BIS |
| Model | MPW-8001-ACAAG |
