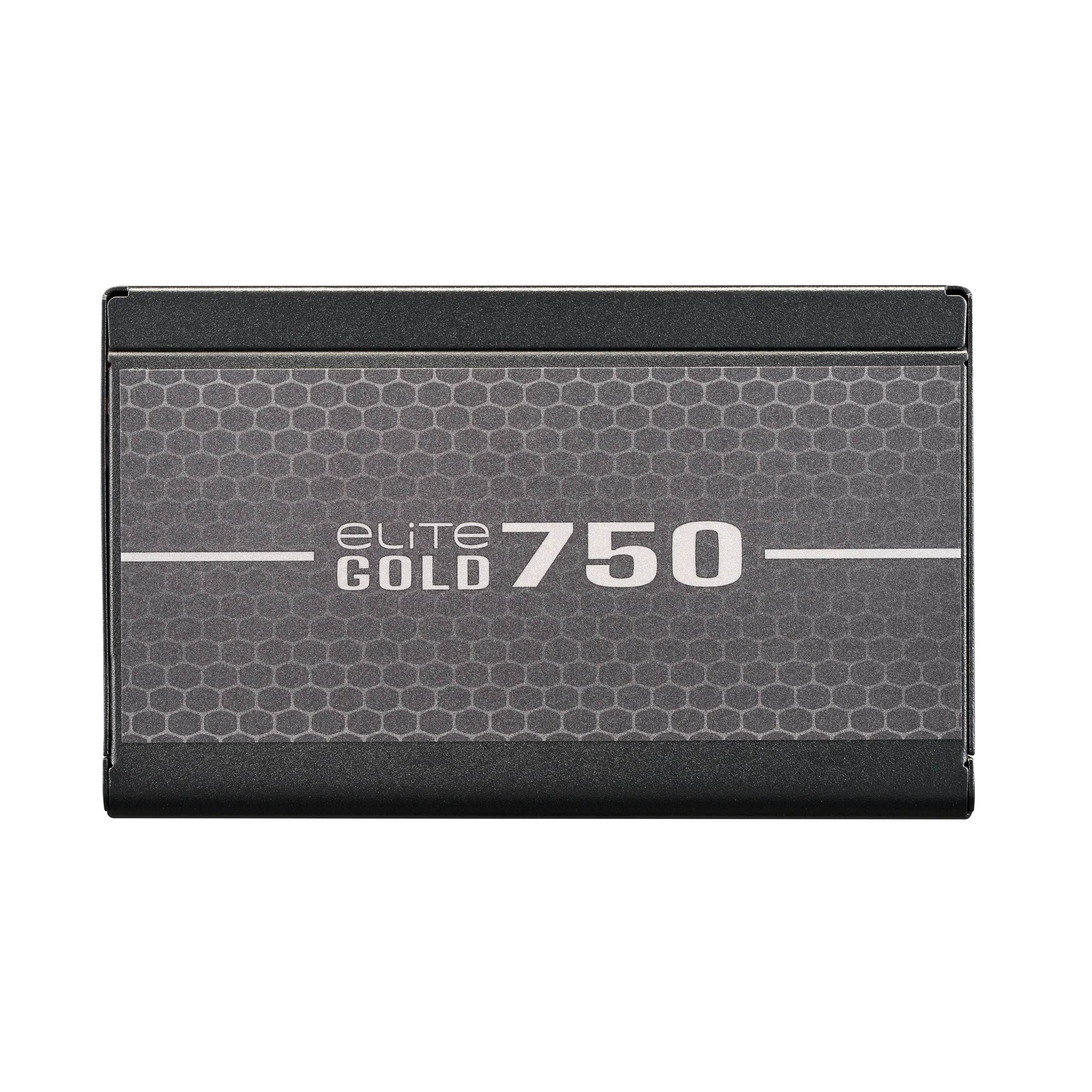

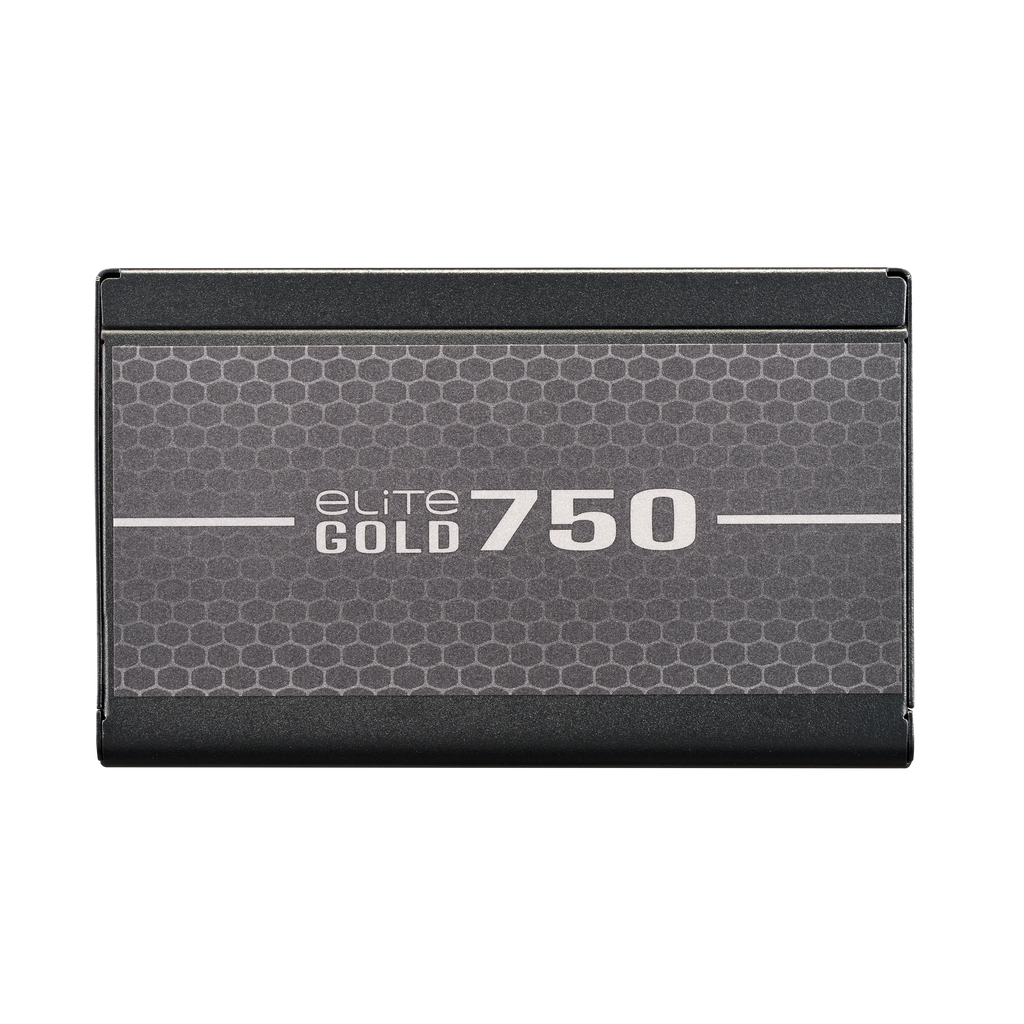

SMPS CM ELITE GOLD 750W
| Features | Specification |
|---|---|
| Product Name | ELITE GOLD 750 |

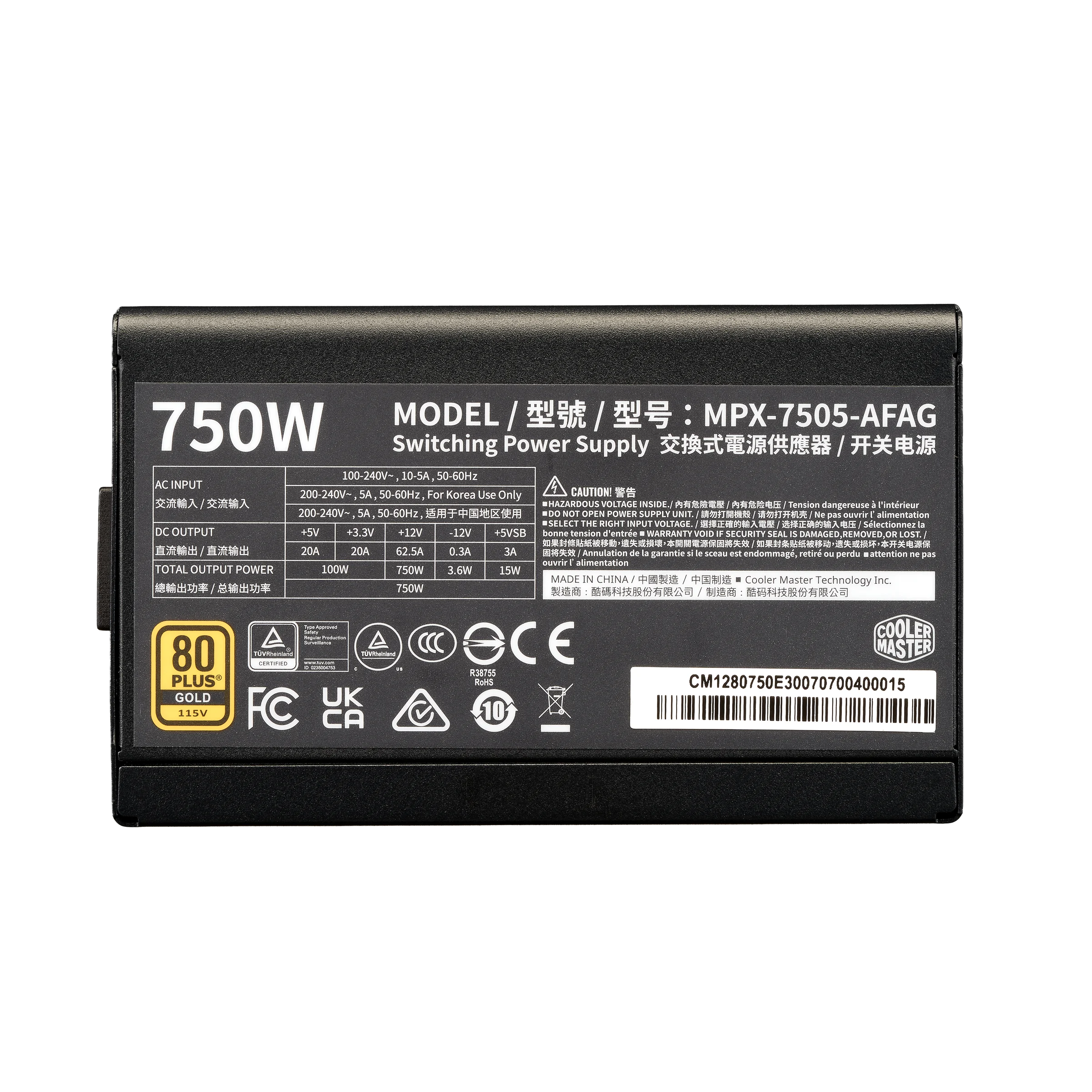

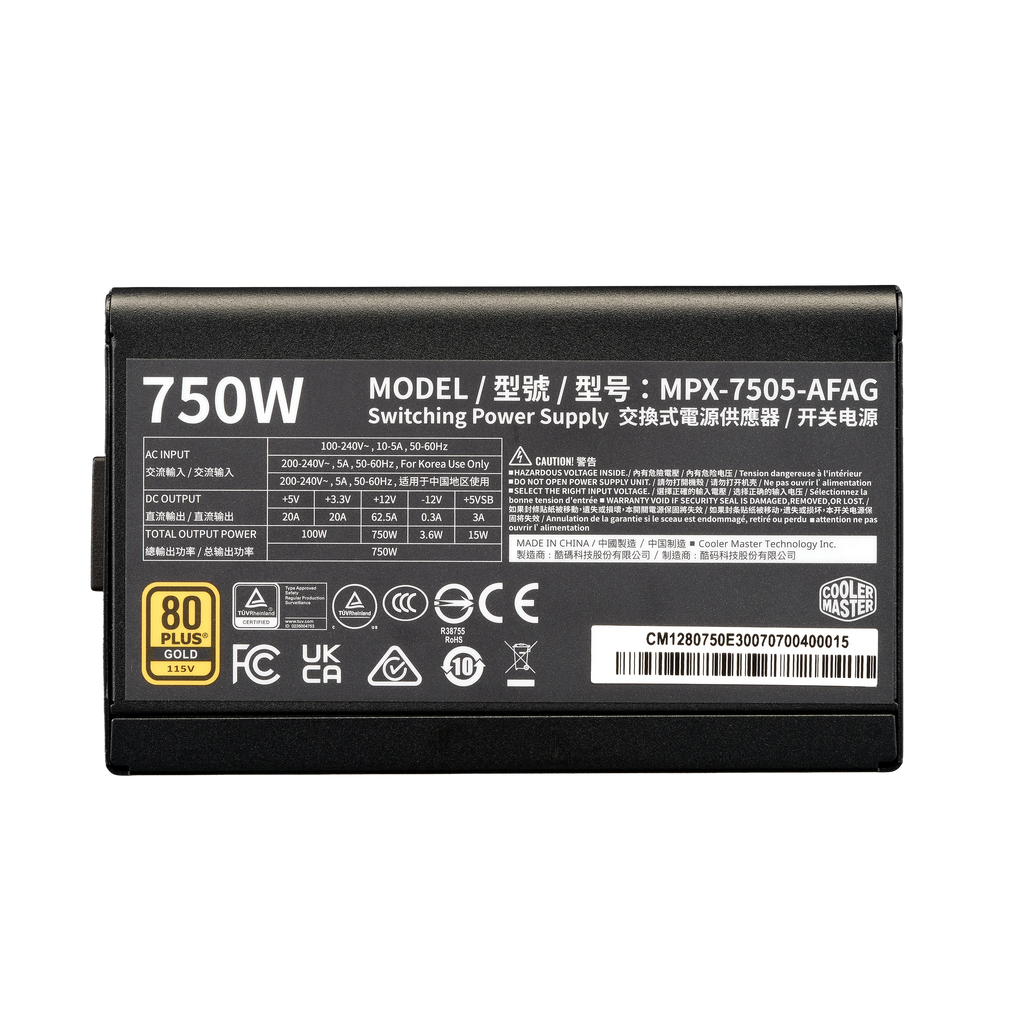

| Model | MPX-7505-AFAG |
| Series | Elite Series |
| Form Factor | ATX |
| ATX Version | ATX 12V Ver. 3.1 |
| Power Output | 750W |
| Modular Type | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 5 ~ 10A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Rifle Bearing |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0°C – 40°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | ≥11ms @ 100% Load |
| MTBF | >100,000 Hours @ 25°C Ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory Certifications | cTUVus, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0 |
| ATX 24 Pin Connectors | x1 (550mm) |
| EPS 4+4 Pin / EPS 8 Pin Connectors | x2 = 1 (600+120mm) |
| SATA & Peripheral 4 Pin Connectors | X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm] |
| PCI-e 6+2 Pin Connectors | x2 = 1 (500+120mm) |
| 12+4 Pin Connectors | x1 (650mm) |
| Warranty | 10 Years |
