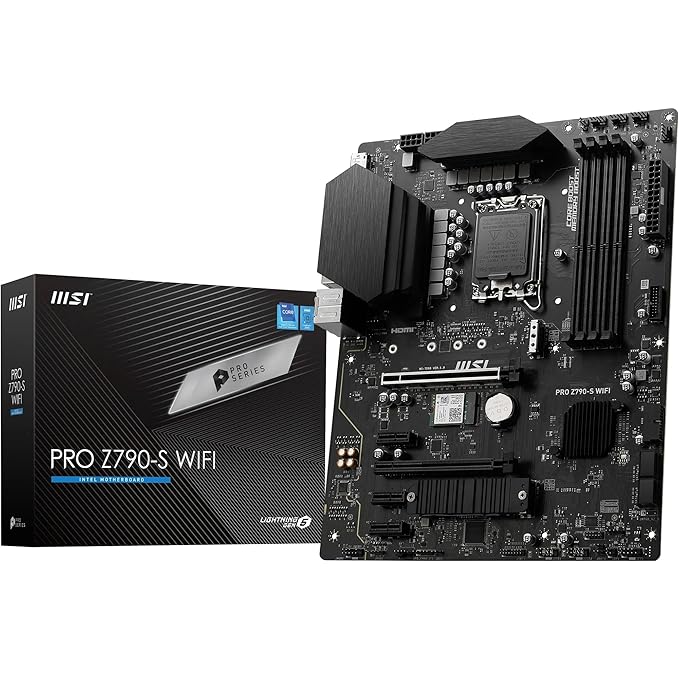

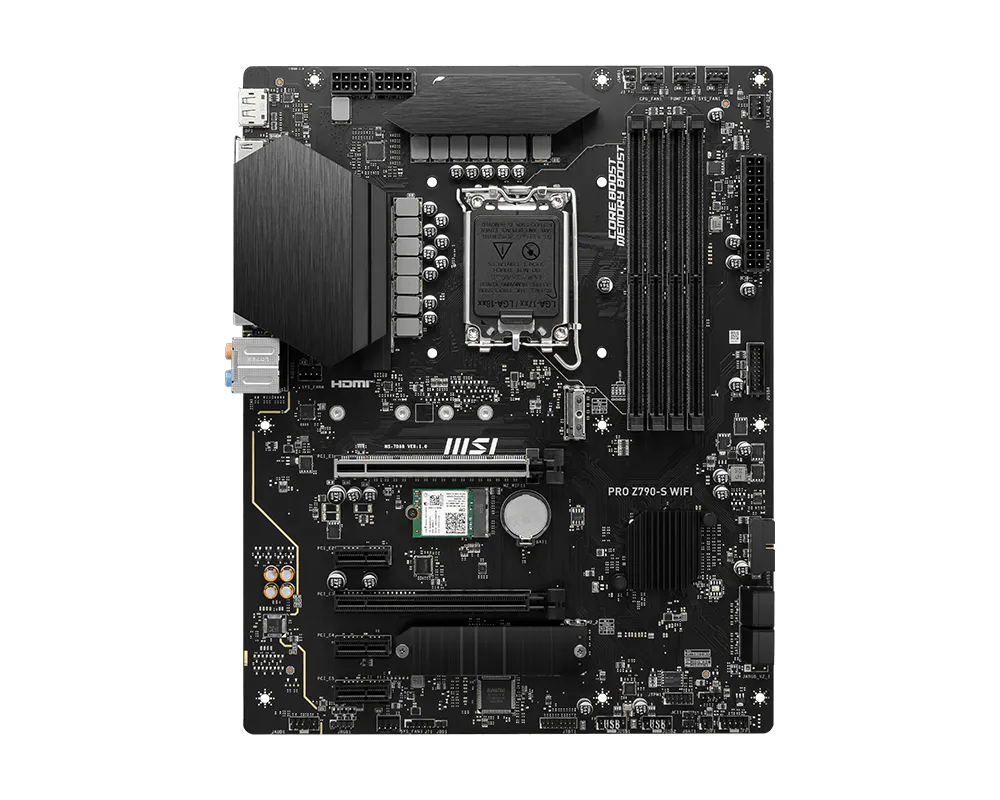

MSI PRO Z790-S WIFI DDR5
| Features | Specifications |
|---|---|
| Model | MSI PRO Z790-S WIFI |
| Chipset | Intel® Z790 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® |
| Memory Type | DDR5 |
| Memory Slots | 4 x DDR5 DIMM |
| Max Memory | 256GB |
| Memory Speed | Up to 6600+ MHz (OC) |
| Memory Channel | Dual Channel |
| Form Factor | ATX |
| PCIe x16 Slots | 2 x PCIe x16 (1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4) |
| PCIe x1 Slots | 3 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Realtek® 2.5GbE LAN |
| Wireless Connectivity | Intel® Wi-Fi 6E + Bluetooth® 5.3 |
| Display Outputs | HDMI™ + DisplayPort |
| Audio | Realtek® ALC897 7.1 Channel HD Audio |
| USB Ports | USB 3.2 Gen 2×2 Type-C (20Gbps), USB 3.2 Gen1, USB 2.0 |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| RGB Support | Mystic Light RGB Header |
| Special Features | PCIe 5.0, Lightning Gen4 M.2, Core Boost, Memory Boost, M.2 Shield Frozr, Steel Armor |
| Operating System | Windows® 10 / 11 (64-bit) |
| Warranty | 3 Years |
