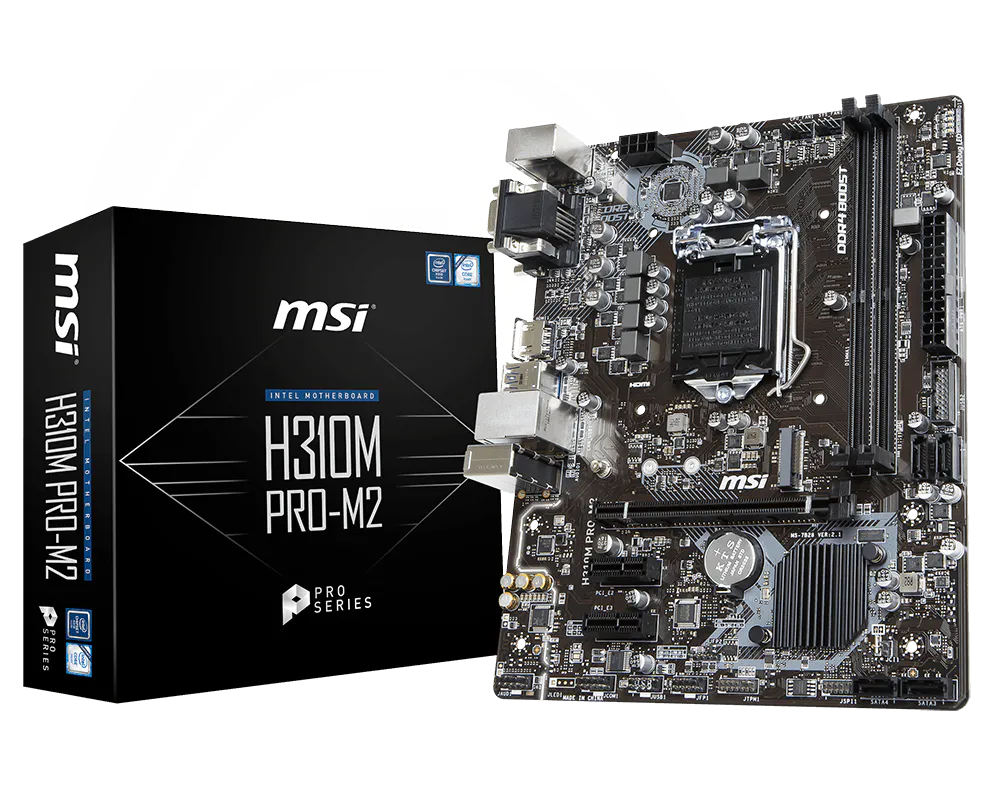

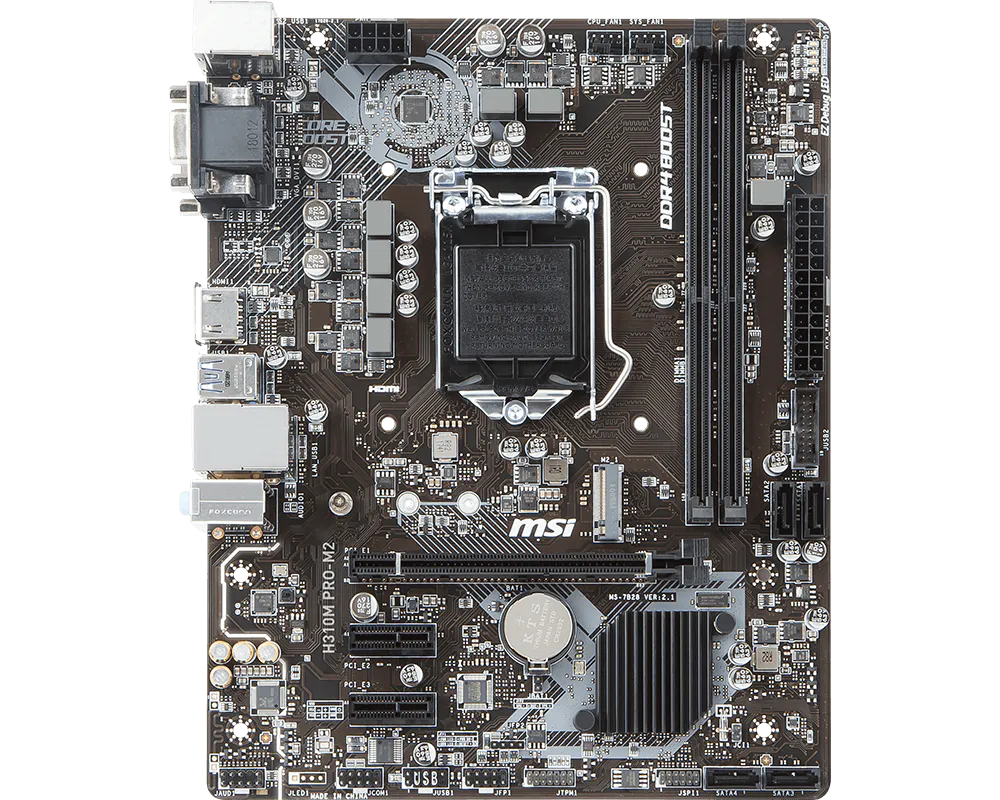

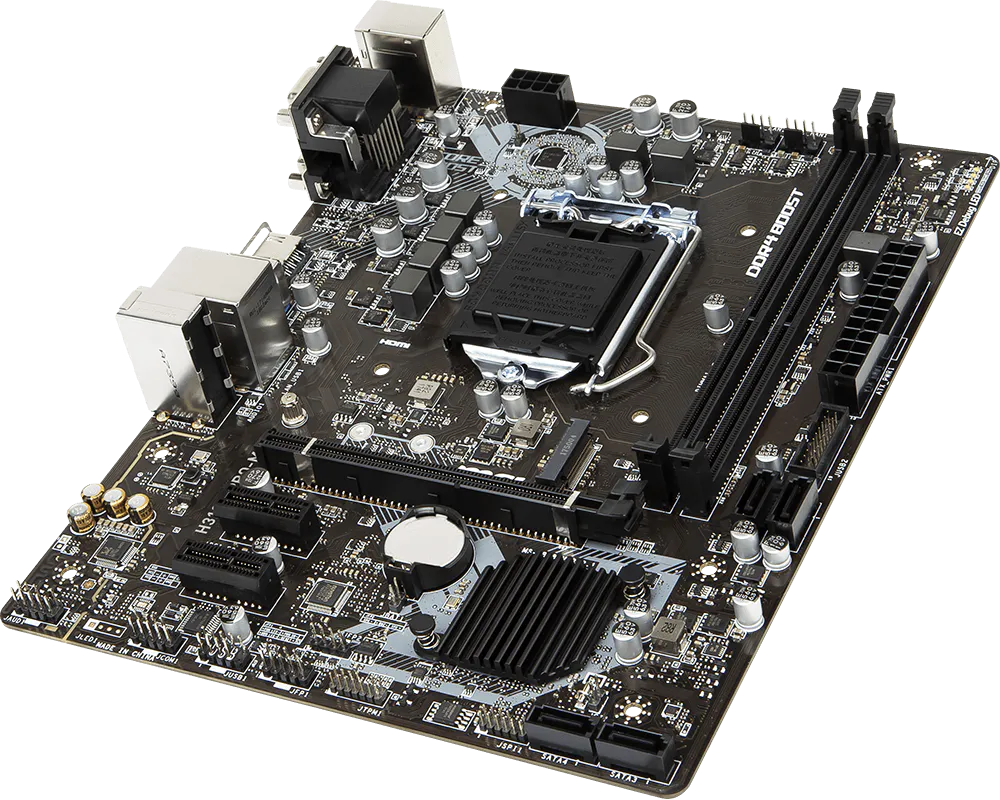

MSI PRO H310M M2 DDR4
| Features | Specifications |
|---|---|
| Model | MSI H310M PRO-M2 |
| Chipset | Intel® H310 |
| CPU Socket | LGA 1151 |
| Processor Support | Intel® 8th & 9th Gen Core™, Pentium® Gold, Celeron® |
| Memory Type | DDR4 |
| Memory Slots | 2 x DDR4 DIMM |
| Max Memory | 32GB |
| Memory Speed | 2666 / 2400 / 2133 MHz |
| Memory Channel | Dual Channel |
| Form Factor | Micro-ATX |
| PCIe x16 Slot | 1 x PCIe 3.0 x16 |
| PCIe x1 Slots | 2 x PCIe 2.0 x1 |
| M.2 Slot | 1 x M.2 (PCIe 2.0 x4 / SATA) |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Intel® I219-V Gigabit LAN |
| Display Outputs | HDMI™, DVI-D, VGA |
| Audio | Realtek® ALC887 7.1 Channel HD Audio |
| USB 3.1 Gen1 | 4 Ports |
| USB 2.0 | 6 Ports |
| TPM Header | Yes |
| Operating System | Windows® 10 64-bit |
| Warranty | 3 Years |
