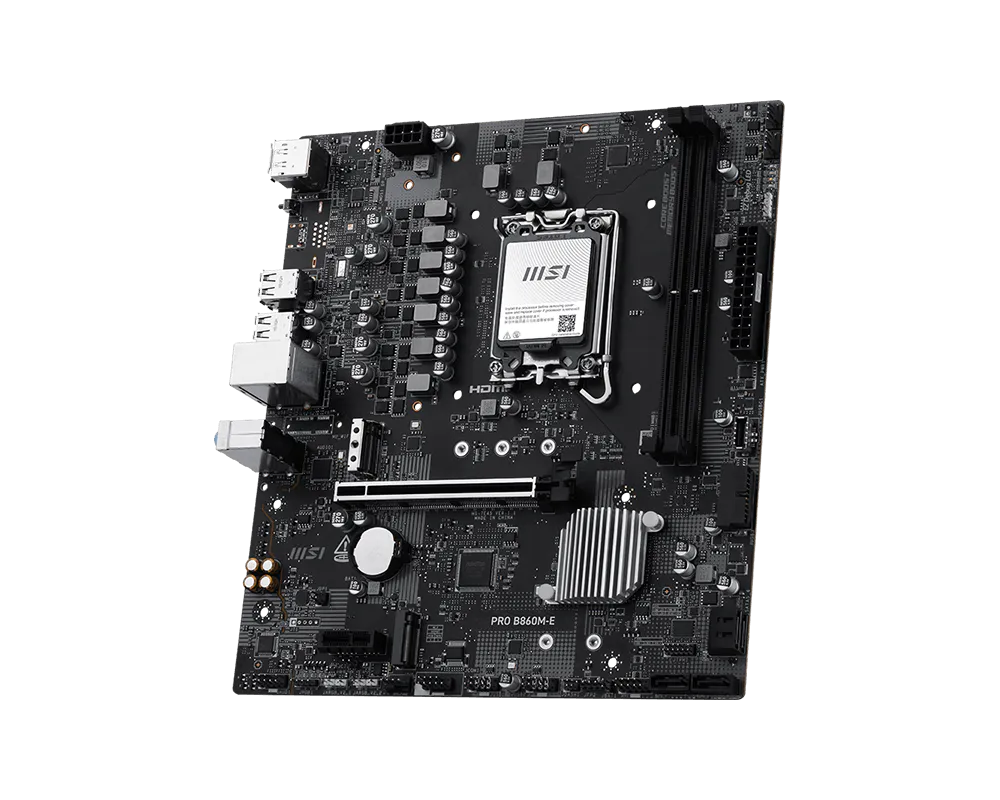

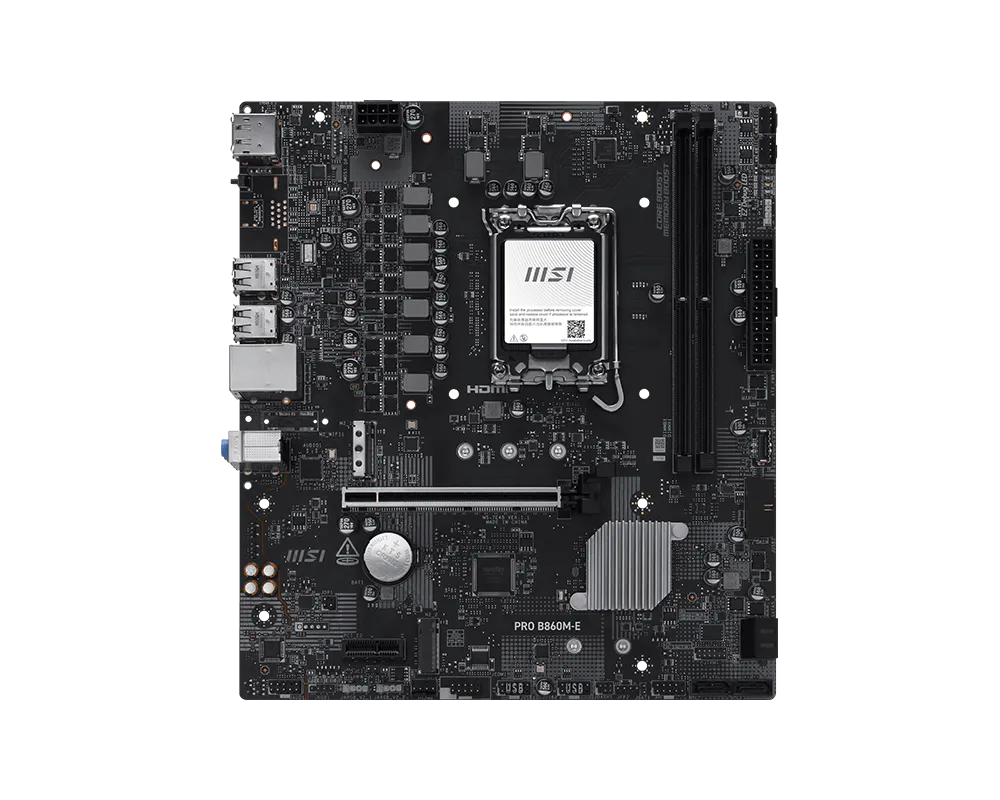

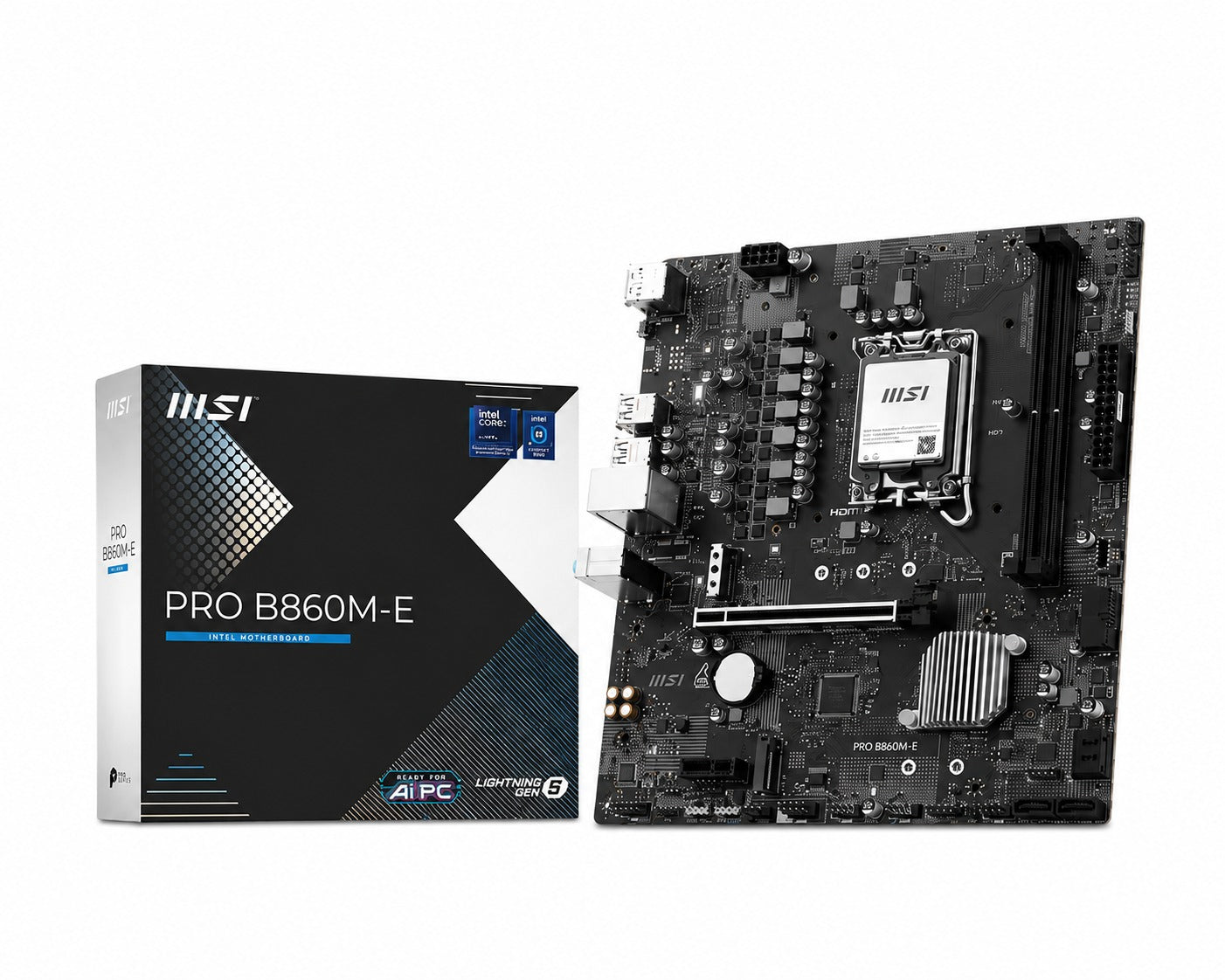

MSI PRO B860M-E DDR5
| Features | Specifications |
|---|---|
| Model | MSI PRO B860M-E DDR5 |
| Chipset | Intel® B860 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory Slots | 2 x DDR5 DIMM |
| Max Memory | 128GB |
| Memory Speed | Up to 9066+ MT/s (OC) |
| Memory Channel | Dual Channel |
| Form Factor | Micro-ATX |
| PCIe x16 Slot | 1 x PCIe 5.0 x16 |
| PCIe x1 Slot | 1 x PCIe 4.0 x1 |
| M.2 Slots | 2 x M.2 (1 x PCIe 5.0, 1 x PCIe 4.0) |
| SATA Ports | 4 x SATA 6Gb/s |
| LAN | Realtek® 5GbE LAN |
| Display Outputs | HDMI™ 2.1 + DisplayPort 1.4 |
| Audio | Realtek® ALC897 7.1 HD Audio |
| USB Ports | USB 10Gbps Type-C, USB 5Gbps Type-A, USB 2.0 |
| RGB Support | Mystic Light RGB Headers |
| Special Features | PCIe 5.0, Lightning Gen5 M.2, EZ PCIe Clip II, EZ M.2 Clip II, Core Boost, Memory Boost |
| Operating System | Windows 11 (64-bit) |
| Warranty | 3 Years |
